| Camera | Image Sensor | 1/4-type interline transfer CCD |
| Effective Pixels | 768 (H) x 494 (V) | |
| Scanning Mode | 2 : 1 interlace scan (with motion adaptive interlace/progressive conversion) | |
| Scanning Area | 0.359 (H) x 0.270 (V) cm | |
| Minimum Illumination | Color (30IRE): 0.5 lux (Sens up: OFF), 0.02 lux (Sens up: 32x) at F1.4 B/W (10IRE): 0.04 lux (Sens up: OFF), 0.0013 lux (Sens up: 32x) at F1.4 |
|
| White Balance | AWC (2,000 ~ 10,000 K), ATW1 (2,700 ~ 6,000 K), ATW2 (2,000 ~ 6,000 K) | |
| Light Control | Automatic integration of ALC/ELC | |
| AGC | ON (LOW, MID, HIGH) / OFF | |
| Super Dynamic III | ON / OFF (With BLC masking 8 x 6 areas) | |
| Dynamic Range | 52 dB typical (Super Dynamic III: ON, Shutter speed: OFF) | |
| Electronic Shutter | OFF (1/60), AUTO, 1/100 | |
| Electronic Sensitivity UP | OFF / AUTO (2x / 4x / 6x / 10x / 16x / 32x) | |
| Digital Noise Reduction | High/Low, 2D/3D adaptive DNR | |
| Black and White Mode | ON / OFF / Auto (High / Low), Wait time: 10 sec. ~ 5 min. | |
| Digital Zoom | Up to 10x | |
| Video Motion Detection | For preset position: 4 programable detection areas, Sensitivity: 6 steps Non-preset position: Detects entire screen except clock area, Sensitivity: 6 steps | |
| Privacy Zone | Up to 8 zones, Gray / Mosaic | |
| Auto Image Stabilizer | ON / OFF | |
| Camera Title (OSD) | Up to 16 characters (alphanumeric characters, marks) | |
| Auto Focus | AUTO | |
| Lens | Focal Length | 0.38 cm ~ 11.4 cm, 30x Zoom, 300x with 10x digital zoom. |
| Zoom Speed | Manual: Approx. 6 sec. (WIDE ~ TELE) Preset: Approx. 2 sec. (WIDE ~ TELE) | |
| Angular Field of View | H: 1.9°(TELE) ~ 52.0°(WIDE), V: 1.4°(TELE) ~ 40.0°(WIDE) | |
| Maximum Aperture Ratio | 1 : 1.4 (WIDE) ~ 3.7 (TELE) | |
| Focusing Range | 1.5 m ~ ∞ | |
| Aperture Range | F1.4 ~ 22, Close | |
| Pan and Tilt | Panning Range | 360°endless |
| Panning Speed | Manual: Approx. 0.065°/s ~ 120°/s, Up to 256 steps (depending on the controller) Preset: up to approx.400°/s |
|
| Tilting Range | –5°~ 185°(upward-level-downward) Tilting angle limit: 0°/ –1°/ –2°/ –3°/ –4°/ –5° | |
| Tilting Speed | Manual: Approx.0.065°/s ~ 120°/s, Up to 256 steps (depending on the controller) Preset: up to approx.400°/s |
|
| Proportional Pan/Tilt Control | Yes | |
| Number of Preset Positions | 256 | |
| Auto Mode | OFF / preset sequence / auto pan / auto track / patrol | |
| Auto Track | Standard Auto track | |
| Patrol | 1 / 2 / 3 / 4 | |
| Image Hold | ON / OFF | |
| Digital Flip | Yes | |
| PTZ Position Display | ON / OFF | |
| Preset Position Setting | Preset ID / Auto focus / Dwell time / SDIII/ ALC mask area | |
| Map Shot | 360°map shot / preset map shot | |
| Browser GUI | Camera Control | Pan/Tilt (16 steps), Zoom, Focus, Click centering, Drag zoom, GUI Iris, Preset position call and program, Auto mode. |
| Display Mode | Image from 16 cameras can be displayed in 4 different Quad screens or 16-screen (JPEG only). | |
| Camera Title | Up to 20 alphanumeric characters | |
| SD Memory Data Download | Images recorded in the SD memory card can be downloaded. | |
| Clock Display | Time: 12 H / 24 H, Date: 5 formats on the browser, Summer time (Manual) | |
| Alarm Control | Reset | |
| GUI / Setup Menu Language | English, French, Italian, Spanish, German, Russian (Installation required except for English) | |
| System Log | Alarm log, Manual REC log, FTP error log (SD memory required) | |
| Supported OS *sup2/sup *sup3/sup | Microsoft® Windows® XP Professional/Home SP2, Microsoft® Windows Vista The language of the OS must be same as selected GUI language. | |
| Supported Browser | Microsoft® Internet Explorer ® 7.0 Microsoft® Internet Explorer ® 6.0 SP2 Microsoft® Internet Explorer ® 6.0 SP1 (Only with Windows 2000 Professional SP4) | |
| Network | Network IF | 10Base-T / 100Base-TX, RJ-45 connector |
| Image Resolution | VGA (640 x 480) / QVGA (320 x 240) | |
| Image Compression | MPEG-4: Image quality: LOW / NORMAL / FINE, Transmission type: UNICAST / MULTICAST JPEG: Image quality: 10 steps, Transmission type: PULL / PUSH MPEG-4 and JPEG dual streaming and JPEG multi-resolution supported. |
|
| Image Refresh Rate | 0.1 / 0.2 / 0.33 / 0.5 / 1 / 2 / 3 / 5 / 6 / 10 / 15 / 30 ips (Max rate will be 5 ips-VGA, 10 ips-QVGA when transmitting JPEG and MPEG-4 simultaneously) | |
| Audio Compression | G.726 (ADPCM) 32 kbps / 16 kbps | |
| Audio Mode | OFF / Mic input / Audio output / Interactive (Half duplex) / Interactive (full duplex) | |
| Authentication for Audio | Level 1 only / Level 2 higher / All users | |
| Total Bit Rate | 64 / 128 / 256 / 512 / 1,024 / 2,048 / 4,096 kbps / Unlimited | |
| Max Bit Rate / Client (MPEG-4) | 64 / 128 / 256 / 512 / 1,024 / 1,536 / 2,048 / 3,072 / 4,096 kbps or Frame rate priority (4,096 kbps / Unlimited) | |
| Supported Protocol | TCP/IP, UDP/IP, HTTP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, RTP | |
| FTP Client | Alarm image transfer, Periodic image transfer | |
| No. of Simultaneous Users | Up to 8 users | |
| Mini SD Memory Card (option) | Manual REC / Alarm REC / Backup upon network failure. Compatible SD card: Panasonic mini SD card: 64 MB, 128 MB, 256 MB, 512 MB, 1 GB, 2 GB model. SDHC standard card not supported. | |
| Alarm E-mail | Yes, Port number assignable. | |
| User Registration | Up to 16 users | |
| User/Host Level | 3 Levels: Administrator, Camera control, Live only | |
| Security Measures | User authentication (ID 32 digit, PW 32 digit), Host authentication (IP address) | |
| Alarm | Alarm Source | 3x Terminal inputs, VMD, Command alarm |
| Alarm Actions | Preset position 1 ~ 256, PATROL 1 ~ 4, SD memory recording, FTP image transfer, e-mail notification, Indication on browser, Terminal output, Panasonic protocol output, Auto track | |
| Alarm Log | With SD memory card: 5,000 logs, Without SD memory card: 1,000 logs | |
| Schedule | Alarm / VMD / Access permission, Preset position call, Position refresh | |
| Input/Output | Monitor Output | 1.0 V [P-P] / 75 Ω, PAL composite, BNC |
| Microphone Input | MIC IN (Applicable microphone; Plug-in power type) Supply voltage: 2.5 V ±0.5 V Input impedance: 3 KΩ ±10% | |
| Audio Output | AUDIO OUT ø0.35 cm stereo mini jack (monaural output) Line level | |
| External I/O Terminals | ALARM IN 1 / BW IN, ALARM IN 2 / ALARM OUT, ALARM IN 3 / AUX OUT | |
| General | Safety/EMC Standard | CE (EN60065, EN55022 ClassB,EN55024),GOST (GOST R 51558) |

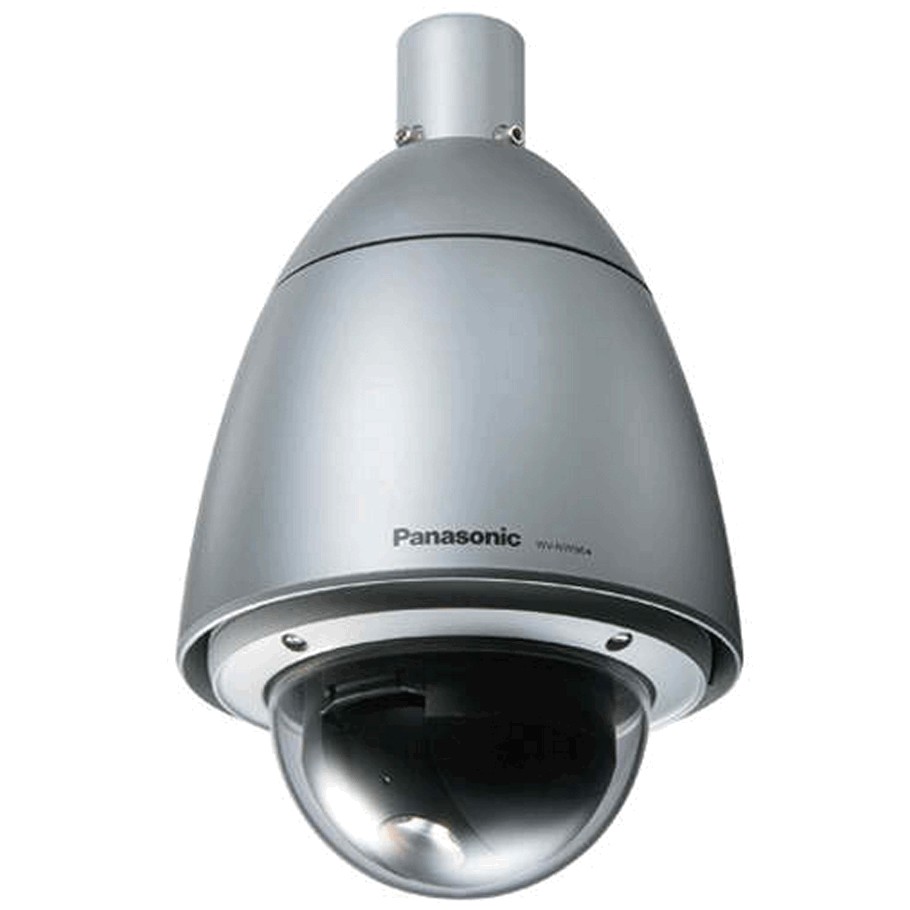

| Power Source and Power Consumption | WV-NW960: 220 ~ 240 V AC 50 Hz, 90 W (Heater ON) | |
| Ambient Operating Temperature | –40 °C ~ +50 °C (–40 °F ~ 122 °F) (Heater ON) | |
| Ambient Operating Humidity | 90 % or less (without condensation) | |
| Water and Dust Resistance | IP66, IEC60529 measuring standard compatible. | |
| Dimensions | ø23.9 cm x 39.55 cm (H) | |
| Weight (approx.) | 4.9 kg (10.78 lbs.) | |
| Note | * Weights and dimensions are approximate. * Specifications are subject to change without notice. |
|
