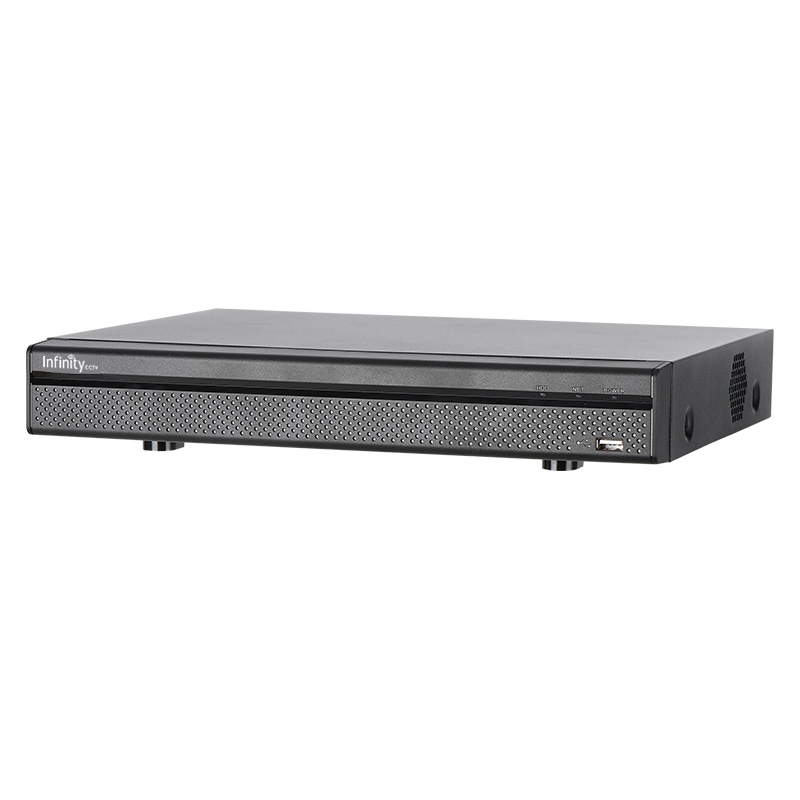

Embedded processor
H.264+/H.264 dual-stream video compression
Support HDCVI/CVBS video inputs
Max 6/12/24 channels IP camera inputs, each channel up to 8MP
Max 24/48/96Mbps Incoming Bandwidth
HDMI output up to 4K(3840x2160) resolution
Smart Search and Intelligent Video System
Description
| System | Main Processor | Embedded Processor |
| Operating System | Embedded LINUX | |
| Display | Interface | 1 HDMI(up to 3840x2160),1 VGA |
| Resolution | 3840x2160,1920×1080, 1280×1024, 1280×720, 1024×768 | |
| Multi-screen Display | 4CH: 1/4/6 8CH: 1/4/8/9/16 16CH: 1/4/8/9/16/25 |
|
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | |
| Video Detection and Alarm | Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss,Tampering and Diagnosis |
|
| Playback and Backup | Playback | 4CH: 1/4 8CH: 1/4/9 16CH: 1/4/9/16 |
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) | |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom | |
| Backup Mode | USB Device/Network | |
| Storage | Internal HDD | 1 SATA Port, up to 8TB capacity |
| Auxiliary Interface | USB | 2 USB Ports (1 USB 2.0 , 1 USB 3.0) |
| RS485 | 1 Port, for PTZ Control | |
| Third-party Support | Third-party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
| Audio and Video | HDCVI Camera Input | 4/8/16 Channel |
| IP Camera Input | 4+2/8+4/16+8 Channel, each channel up to 8MP | |
| Audio In/Out | 1/1, RCA | |
| Two-way Talk | Reuse audio in/out, RCA | |
| Recording | Compression | H.264+/H.264 |
| Resolution | 4K, 4MP, 1080P, 720P, 960H, D1, HD1, BCIF, CIF, QCIF | |
| Record Rate | Main stream: 1st channel 4K(1~12/15fps)/ 4MP(1~15fps), others 4MP(1~15fps); 1080P/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps) Sub steram:D1/CIF/QCIF(1~25/30fps) |
|
| Bit Rate | 1Kbps ~ 12288Kbps Per Channel | |
| Record Mode | Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop | |
| Record Interval | 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
|
| Network | Interface | 1 RJ-45 Port (1000M) |
| Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Support Dahua IP camera, DVR, NVS, etc.) |
|
| Max. User Access | 128 users | |
| Interoperability | ONVIF 2.42, CGI Conformant | |
| Electrical | Power Supply | 4/8CH: DC12V/2A, 16CH: DC12V/3A |
| Power Consumption | <15W (Without HDD) | |
| Environmental | Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH | |
| Construction | Dimensions | Mini 1U, 325mm×255mm×55mm (12.8" x 10" x 2.2") |
| Net Weight | 1.5kg (3.3 lb) (without HDD) | |
| Gross Weight | 2kg (4.4lb) | |
| Certifications | Certifications | FCC: Part 15 Subpart B ICES 003 Issue 6 CE: EN 55032: 2012+AC:2013 (Class B) EN 55024 : 2010 EN 61000-3-2 : 2014 EN 50130-4: 2011 EN 61000-3-3 : 2013 UL: 60950-1 and CAN/CSA C22.2 No. 60950-1-07 |
