Connectable to HDTVI, AHD, HDCVI and analog cameras
Up to 2ch 2MP IP cameras input
Long distance transmission over UTP and coaxial cable compression and recording
One key enable H.264+ compression to improve encoding efficiency by up to 50% and reduce data storage costs
Description

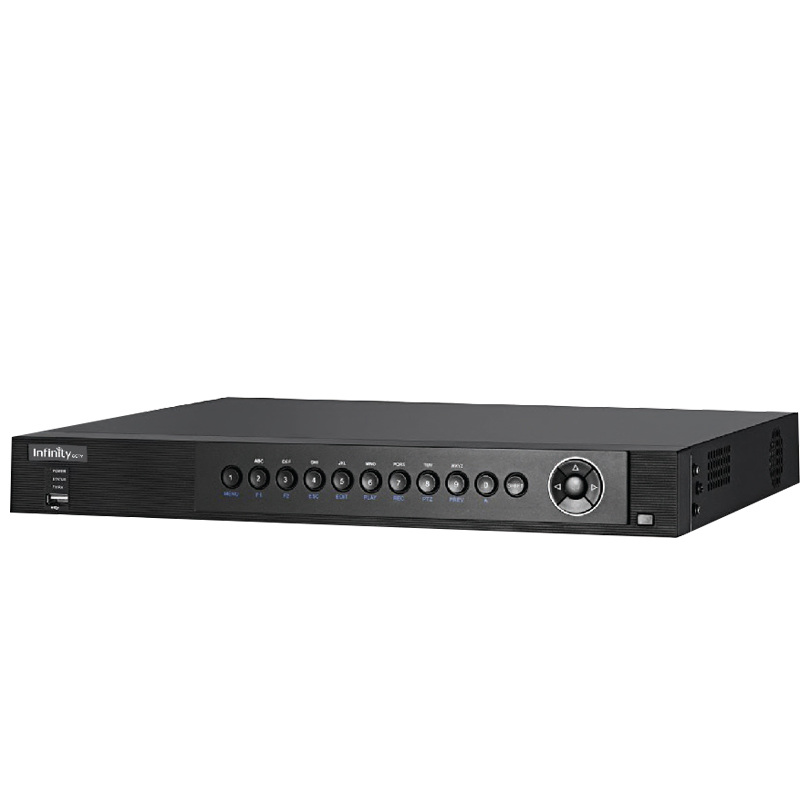

| Model | TDV-7304/7308-H1 | |
| Video/Audio input |
Video compression |
H.264+/H.264 |
| Analog video input |
4/8-ch | |
| BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection | ||
| HDTVI input | 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz, 3 MP | |
| AHD input | 720p/25Hz, 720p/30Hz | |
| CVBS input | Support | |
| IP video input | 2-ch | |
| Up to 4 MP resolution | ||
| Audio compression |
G.711u | |
| Audio input | 4-ch, RCA (2.0 Vp-p, 1 KΩ) | |
| Video/Audio output |
CVBS output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| HDMI/VGA output |
VGA : 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
|
| HDMI : 1-ch, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
||
| Encoding resolution |
3 MP/1080p/720p/WD1/4CIF/VGA/CIF | |
| Frame rate | Main stream: 3 MP@15fps; 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) |
|
| Sub-stream: WD1/4CIF@12fps; CIF/QVGA/QCIF@25fps (P)/30fps (N) |
||
| Video bit rate | 32 Kbps to 10 Mbps | |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) | |
| Audio bit rate | 64 Kbps | |
| Dual stream | Support | |
| Stream type | Video, Video & Audio | |
| Synchronous playback |
4/8-ch | |
| Network management |
Remote connections |
128 |
| Network protocols |
TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF | |
| Hard disk | SATA | 1 SATA interface |
| Capacity | Up to 6 TB capacity for each disk | |
| External interface |
Two-way audio input |
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input) |
| Network interface |
1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
|
| USB interface | Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0 |
|
| Serial interface | RS-485 (half-duplex) | |
| Alarm in/out | 8/4 | |
| General | Power supply | 12 VDC |
| Consumption (without HDD) |
≤20W | |
| Working temperature |
-10 ºC to +55 ºC (14 ºF to 131 ºF) | |
| Working humidity |
10% to 90% | |
| Dimensions | 315 × 242 × 45 mm | |
| Weight (without HDD) |
≤ 2 kg (4.4 lb) | |
