* Up to 4/8channel IP camera input
* Max 56Mbps incoming bandwidth
* HDMI/VGA simultaneous video output
* Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc
* Audio In/Out 1ch/1ch
* Support 1 SATA HDD up to 4TB, 2 USB2.0
Description

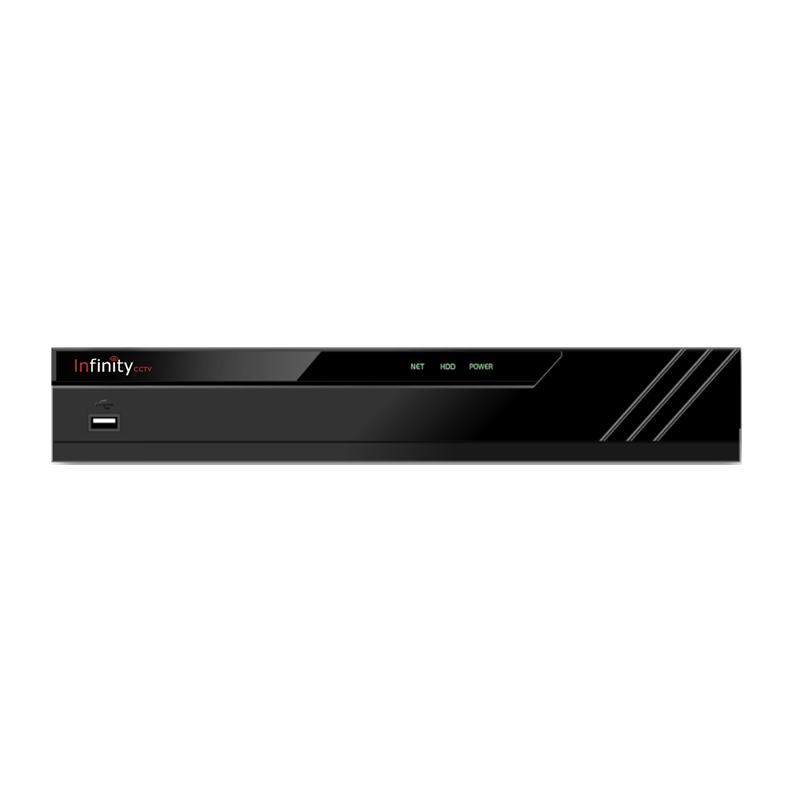

| Model | BNV-3704/3708 | |
| System | Main Processor | Dual-core embedded processor |
| Operating System | Embedded LINUX | |
| Video& Audio | IP Camera Input | 4/8 channel |
| Two-way talk | 1 channel input, 1 channel output, RCA | |
| Display | Interface | 1 HDMI, 1 VGA |
| Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768 | |
| Display Split | 1/4 (BNV-3704), 1/4/8/9 (BNV-3708) | |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | |
| Recording | Compression | H.264/MJPEG |
| Resolution | 1080P(1920×1080) / 720P(1280×720) / D1(704×576/704×480)& etc | |
| Record Rate | Max 56Mbps | |
| Bit Rate | 48~8192kbps | |
| Record Mode | Manual, Schedule(Regular(Continuous), MD), Stop | |
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | |
| Video Detection& Alarm | Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Buzzer & Screen tips |
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | |
| Playback and Backup |
Sync Playback | 1/4 (BNV-3704), 1/4/8(BNV-3708) |
| Search Mode | Time/Date, MD & Exact search (accurate to second), Smart search | |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
|
| Backup Mode | USB Device/Network/Internal SATA burner | |
| Network | Ethernet | 1RJ-45 port (10/100Mbps) |
| Network Function | HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, IP Search (Support Dahua IP camera, DVR, NVS and etc.),SNMP, P2P |
|
| Max. User Access | 128 users | |
| Smart Phone | iPhone, iPad, Android | |
| Storage | Internal HDD | 1 SATA port, up to 4TB |
| Auxiliary Interface | USB | 2 ports (2 Rear), USB2.0 |
| General | Power Supply | DC12V/2A |
| Power Consumption | 10W (without HDD) | |
| Working Environment |
-10°C~+55°C/10%~90%RH/86~106kpa | |
| Dimension(W×D×H) | Mini 1U, 325mm×250mmx55mm | |
| Weight | 1.25kg(without HDD) | |
