* Up to 4/8/16 channel IP camera input
* Max 80Mbps incoming bandwidth
* HDMI/VGA simultaneous video output
* Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch,
Brickcom, Canon, CP Plus, Honeywell, Panasonic, Pelco, Samsung, Sanyo,
Sony, Videotec, Vivotek and etc.
* Audio In/Out 1ch/1ch
* Support 1 SATA HDD up to 4TB, 2 USB2.0
Description

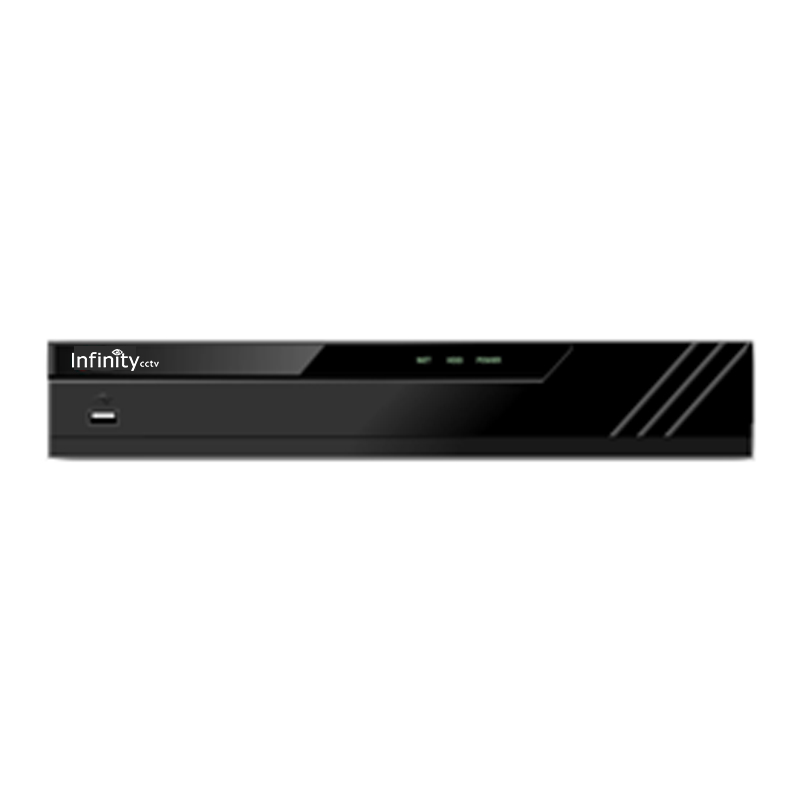

| Model | BNV-3804/08/16 | |
| System | Main Processor | Dual-core embedded processor |
| Operating System |
Embedded LINUX | |
| Video& Audio | IP Camera Input | 4/8/16-ch |
| Two-way Talk | 1channel Input, 1channel Output, RCA | |
| Display | Interface | 1 HDMI, 1 VGA |
| Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768 | |
| Display Split | 1/4, 1/4/8/9, 1/4/8/9/16 | |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | |
| Recording | Compression | H.264/MJPEG |
| Resolution | 5Mp(2560×1920)/3Mp(2048×1536)/1080P(1920×1080)/720P(1280×720)/D1 (704×576/704×480) |
|
| Record Rate | 80Mbps | |
| Bit Rate | 48~ 8192kbps | |
| Record Mode | Manual, Schedule(Regular(Continuous), MD, Alarm), Stop | |
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | |
| Video Detection | Trigger Events | Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips |
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | |
| Playback & Backup | Sync Playback | 1/4, 1/4/8, 1/4/8/16 |
| Search Mode | Time/Date, Alarm, MD & Exact search (accurate to second), Smart search | |
| Playback Function |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | |
| Backup Mode | USB Device/Network/Internal SATA burner | |
| Network | Ethernet | 1 RJ-45 port (10/100Mbps) |
| Network Function |
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.) |
|
| Max. User Access |
128 users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| Storage | Internal HDD | 1 SATA port, up to 4TB |
| Auxiliary Interface |
USB | 2 ports, USB2.0 |
| General | Power Supply | DC12V/2A |
| Power Consumption |
10W(without HDD) | |
| Working Environment |
-10°C~+55°C / 10%~90%RH / 86~106kpa | |
| Dimension | Mini 1U, 325mm×250mm×55mm | |
| Weight | 1.25KG | |
