1/2.9" 1Megapixel CMOS
25/30fps@720P
High speed, long distance real-time transmission
Day/Night(ICR), AWB, AGC, BLC, 2D-DNR
6mm fixed lens (2.8 mm, 3.6mm, 8mm optional)
Max. IR LEDs length 50m, Smart IR
IP67, DC12V
Description

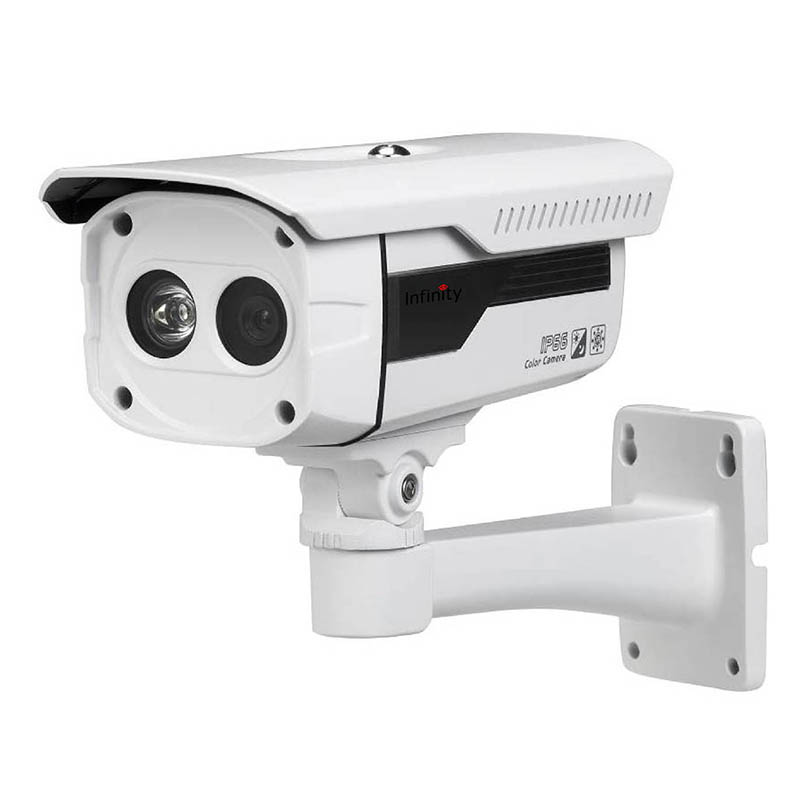

| Model | BS-25 | |
| Camera | Image Sensor | 1/2.9" 1Megapixel CMOS |
| Effective Pixels | 1280(H)×720(V) | |
| Electronic Shutter | 1/50s~1/100,000s | |
| Video Frame Rate | 25fps@720P | |
| Synchronization | Internal | |
| Min. Illumination | 0.01Lux@F1.2 (AGC ON), 0Lux IR LED on | |
| Video Output | 1-channel BNC HDCVI high definition video output | |
| Camera Features | Max. IR LEDs Length | 50m, Smart IR |
| Day/Night | Auto(ICR) / Color / B/W | |
| Noise Reduction | 2D | |
| Lens | Focal length | 6mm (2.8 mm, 3.6mm, 8mm optional) |
| Angle of View | H: 52.2º(103.4º/79.7º/39.9º) | |
| Mount Type | M12 | |
| General | Power Supply | DC12V±10% |
| Power Consumption | Max 4.9W | |
| Working Environment | "-30°C~+60°C / Less than 95%RH (no condensation) | |
| Transmission Distance | Over 800m via 75-3 coaxial cable | |
| Ingress Protection | IP67 | |
| Dimensions | 200.2mm×89.1mm×161.2mm | |
| Weight | 0.58kg | |
| Material | Metal (front) + Plastic (body) | |
