- 3MP high resolution
- Low illumination
- 3D DNR & DWDR & BLC
- IP66 rating
- PoE
- IR range : up to 80m
- True day / night
Description

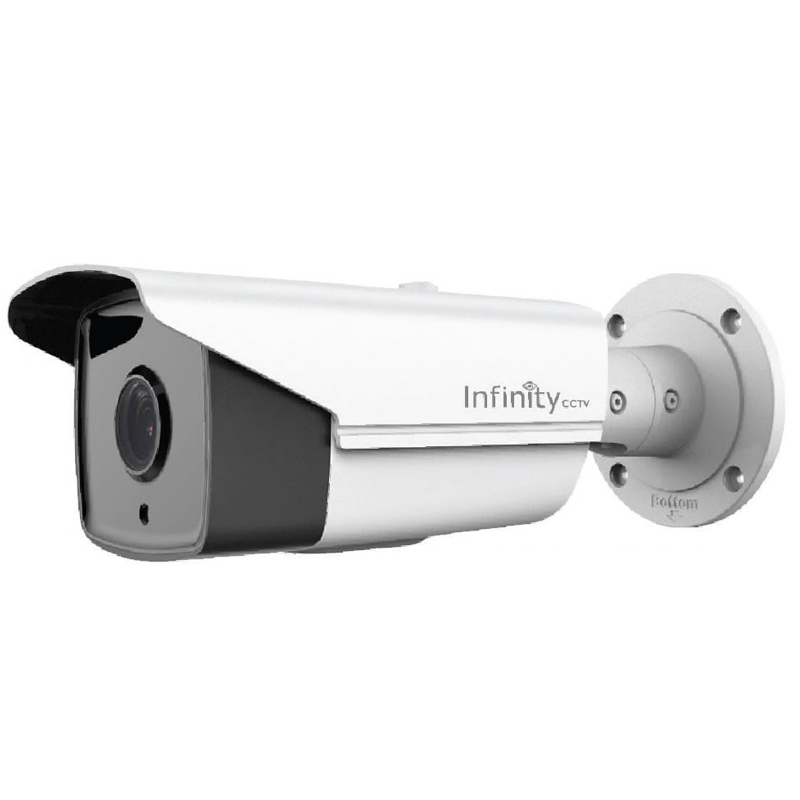

| Model | Infinity I-365 | |
| Camera | Image Sensor: | 1/3” Progressive Scan CMOS |
| Min. Illumination: | 0.07 Lux @(F1.2,AGC ON), 0 Lux with IR 0.1 Lux @(F1.4,AGC ON), 0 Lux with IR |
|
| Shutter Time: | 1/3 s to 1/100,000 s | |
| Lens: | 4 mm @ F2.0 (6mm, 16mm optional) Angle of view: 70° |
|
| Lens Mount: | M12 | |
| Day& Night: | ICR | |
| Digital noise reduction | 3D DNR | |
| Wide dynamic range | Digital WDR | |
| Compression Standard | Video compression | H.264 / MJPEG |
| H.264 codec profile | BaseLine Profile / Main Profile | |
| Bit rate | 32 Kbps ~ 12 Mbps | |
| Dual Stream | Yes | |
| Image | Max. Image Resolution | 2048 × 1536 |
| Frame rate | 50Hz: 20fps (2048 × 1536), 25fps (1920 × 1080), 25fps (1280 × 720) 60Hz: 20fps (2048 × 1536), 30fps (1920 × 1080), 30fps (1280 × 720) |
|
| Image settings | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser | |
| Backlight compensation | Yes, zone optional | |
| ROI | Support | |
| Network | Network storage | NAS |
| Alarm trigger | Motion detection, tampering alarm, scene change detection, face detection, intrusion detection, Line crossing detection |
|
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
|
| System compatibility | ONVIF, PSIA, CGI, ISAPI | |
| General functionalities | User Authentication, Watermark, IP address filtering, Anonymous access | |
| Interface | Communication interface | 1 RJ45 10M / 100M Ethernet interface |
| General | Operating conditions | -30 °C ~ 60 °C (-22°F ~ 140 °F) humidity 95% or less (non-condensing) |
| Power supply | max. 7.5W |
|
| Ingress protection leve | IP66 | |
| IR range | EXIR LEDs, up to 80m | |
| Dimensions | Φ105mm×300mm | |
| Weight | 1200g | |
