-2 Megapixel high-performance CMOS
-Analog HD output, up to 1080P resolution
-True Day/Night
-up to 20m IR distance
Description

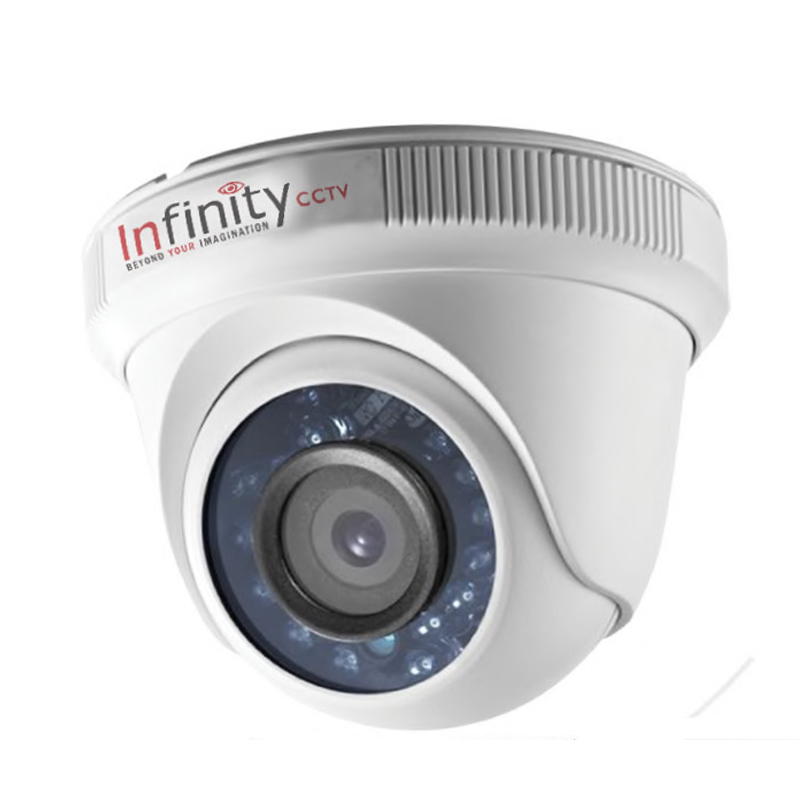

| Model | Infinity TD 22 | ||
| Camera | Image Sensor | 2MP CMOS Image Sensor | |
| Signal System | PAL/NTSC | ||
| Effective Pixels | 1930(H) × 1088(V) | ||
| Min. Illumination | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR | ||
| Shutter Time | 1/25(1/30) s to 1/50,000 s | ||
| Lens | 3.6mm, 6mm optional, Angle of View: 91.3°(3.6mm), 59.9°(6mm) | ||
| Lens Mount | M12 | ||
| Adjustment Range | Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360° | ||
| Day& Night | IR cut filter with auto switch | ||
| Video Frame Rate | 1080p@25fps/1080p@30fps | ||
| HD Video Output | 1 Analog HD output | ||
| Synchronization | Internal Synchronization | ||
| S/N Ratio | More than 62 dB | ||
| Up the Coax | Support | ||
| Menu | Camera ID | On/Off (0-255) | |
| D/N Mode | Color/ BW/ Auto/ EXT | ||
| Auto White Balance | Auto/User/Push/8000K/6000K/4200K/3000K | ||
| Private Mask | On/Off, maximum 8 zones | ||
| Motion Detection | On/Off, maximum 4 zones | ||
| BLC | On/Off | ||
| AGC | Support | ||
| Anti-flicker | On/ Off | ||
| Language | English/Chinese | ||
| Function | Digital noise reduction, Mirror | ||
| General | Operating Conditions |
|
|
| Humidity 90% or less (non-condensing) | |||
| Power Supply | 12 VDC±15% | ||
| Power Consumption | Max. 4W | ||
| IR Range | Up to 20m | ||
| Communication | Up the coax | ||
| Dimension: | Φ89.5 × 69.8 mm(Φ3.52” × 2.75”) | ||
| Weight: | 250 g | ||
